Spray-lubrication systems for strip and sheet material
Full-surface, sector-specific, or partial spray lubrication for strip and sheet material. For reproducible application rates and flexible integration into automated manufacturing processes.
Spray lubrication systems
Precise Lubrication for Reliable Forming Processes
In sheet metal forming, the lubricant must be available where it is needed for the respective forming process—in the correct amount and as consistently as possible. Applying too little lubricant can lead to friction, tool wear, and quality issues with the component. Conversely, applying too much lubricant or covering the entire surface unnecessarily increases consumption and can affect subsequent manufacturing steps as well as the cleaning process. At the same time, varying components, different material widths, and increasing demands on automated manufacturing processes place high demands on lubrication technology.
Spray lubrication systems enable contactless and precisely controlled application of forming lubricants to strip and sheet material. Depending on the system design, the material can be lubricated on one or both sides, as well as over the entire surface, in specific sectors, or in specific areas. With appropriate system configurations, different application rates can also be precisely specified across the material surface. This allows the oiling to be tailored to the actual lubricant requirements of the respective component and forming process.
The Benefits at a Glance
- Precise lubricant application for uniform and consistent lubrication
- Dosage tailored to needs to avoid using unnecessary amounts of lubricant
- Full-surface, sector-specific, or partial oiling, depending on process requirements
- Targeted lubrication of specific component areas in different load zones
- High flexibility when dealing with changing components and varying manufacturing requirements
- Supporting stable forming processes through reproducible application rates
- Integration into automated production lines and connection to higher-level control systems
A Reliable Foundation

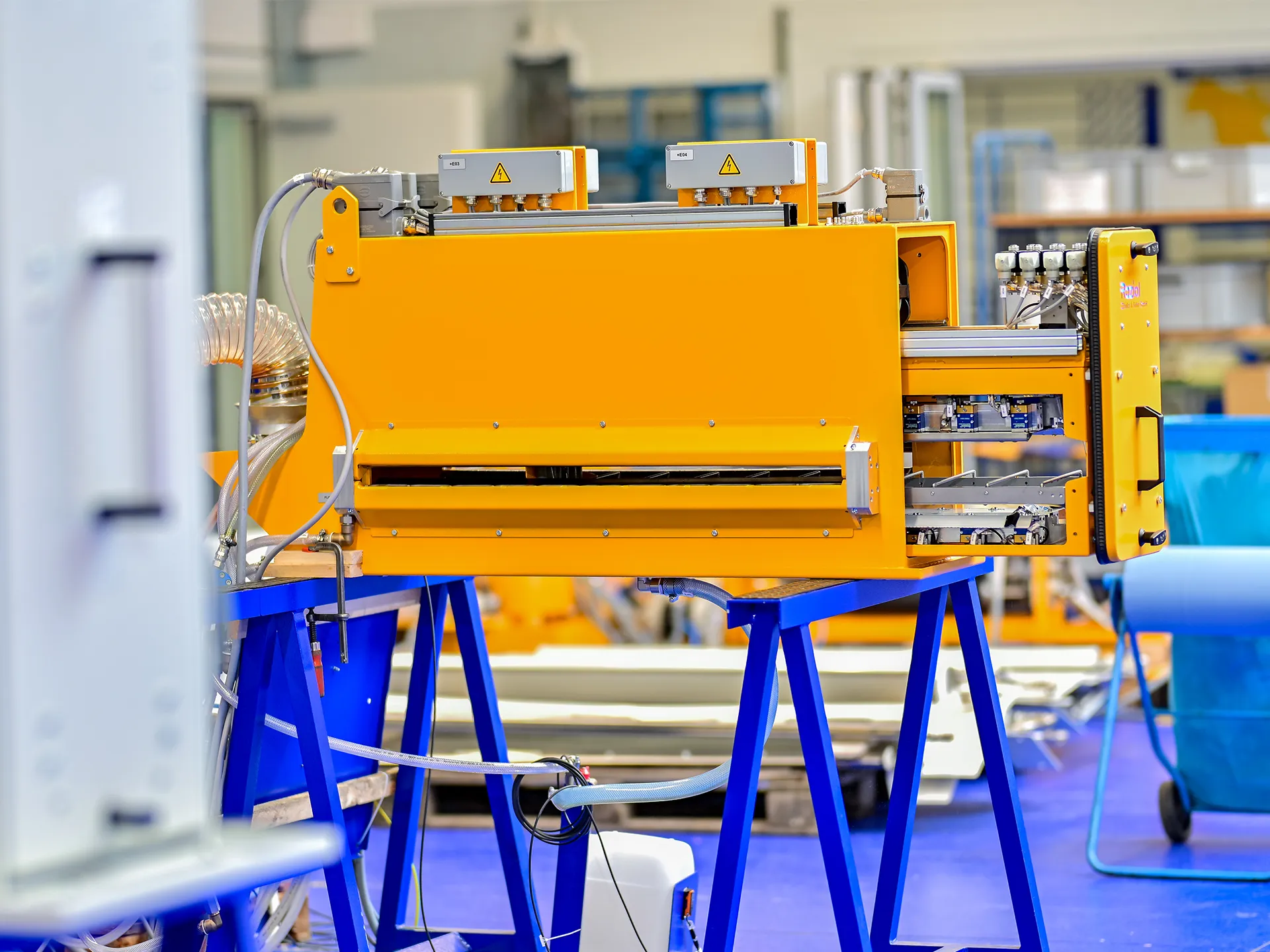

Basic Line SKT-B Spray Chamber
The Basic Line SKT-B spray chamber enables single- or double-sided, full-surface, or sector-specific lubrication of strip material. Thanks to its compact design, it is particularly well-suited for applications where installation space is limited. The lubrication can be specifically tailored to the respective application and the required areas of the strip material. At the same time, the spray chamber is designed for integration into automated production lines and enables precise and reproducible lubricant application.
Areas of Application
- Full-surface or sector-specific oiling of strip material
- Single- or double-sided oiling within continuous manufacturing processes
- Lubrication Applications with Limited Installation Space
- Integration into automated production lines
Features
- Compact design with a low fit line
- Space required in the direction of travel: 240 mm

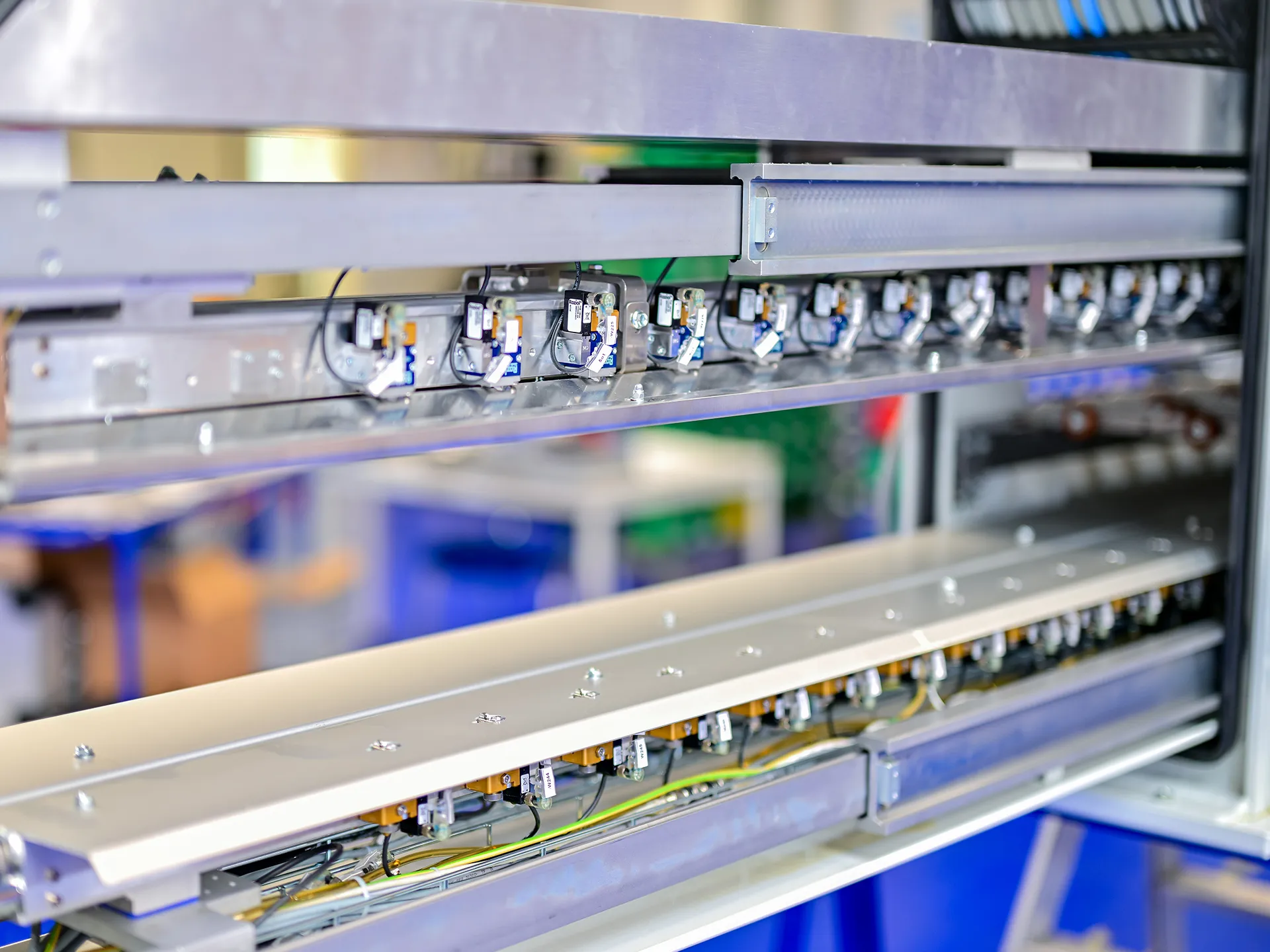

- The inner chamber can be pulled out using slides, while the spray chamber housing remains in line
- Easy access for maintenance, calibration, and cleaning tasks
- Material transition struts below the passline
- High, reproducible precision in terms of application location and application volume
- Processing of a wide variety of lubricants: low- to high-viscosity oils, hot melts, and dry lubes
- Operation via a touchscreen PC connected to the higher-level control system
- Beckhoff or Siemens control systems, including maintenance and diagnostic tools
- Can be integrated into fully automated production lines
Product Information & Advice
Here you will find all relevant documents and additional information about this product. We would be happy to assist you in designing your application and provide personalized advice on suitable solutions.
Technical Inquiry
Personalized Product Advice
versatile
SKT-N Spray Chamber
The SKT-N Line spray chamber enables single- or double-sided, full-surface, sector-specific, or partial oiling of strip or sheet material. Thanks to its flexible design and a wide range of available options, the system can be customized to meet various production requirements. Different application rates can be programmed both in the direction of travel and perpendicular to the direction of material travel. This makes the SKT-N Line particularly suitable for applications that require precise lubricant application tailored to the specific process.
Areas of Application
- Full-surface oiling of strip or sheet material
- Sector-by-sector oiling of strip or sheet material
- Partial or targeted lubrication of specific areas
- Oiling on one or both sides
- Applications with varying application rates within the material area
- Integration into fully automated production lines
Technical Specifications and Features
- For material widths up to 1,900 mm
- Passline: 390 mm
- Space required in the direction of travel: 400 mm

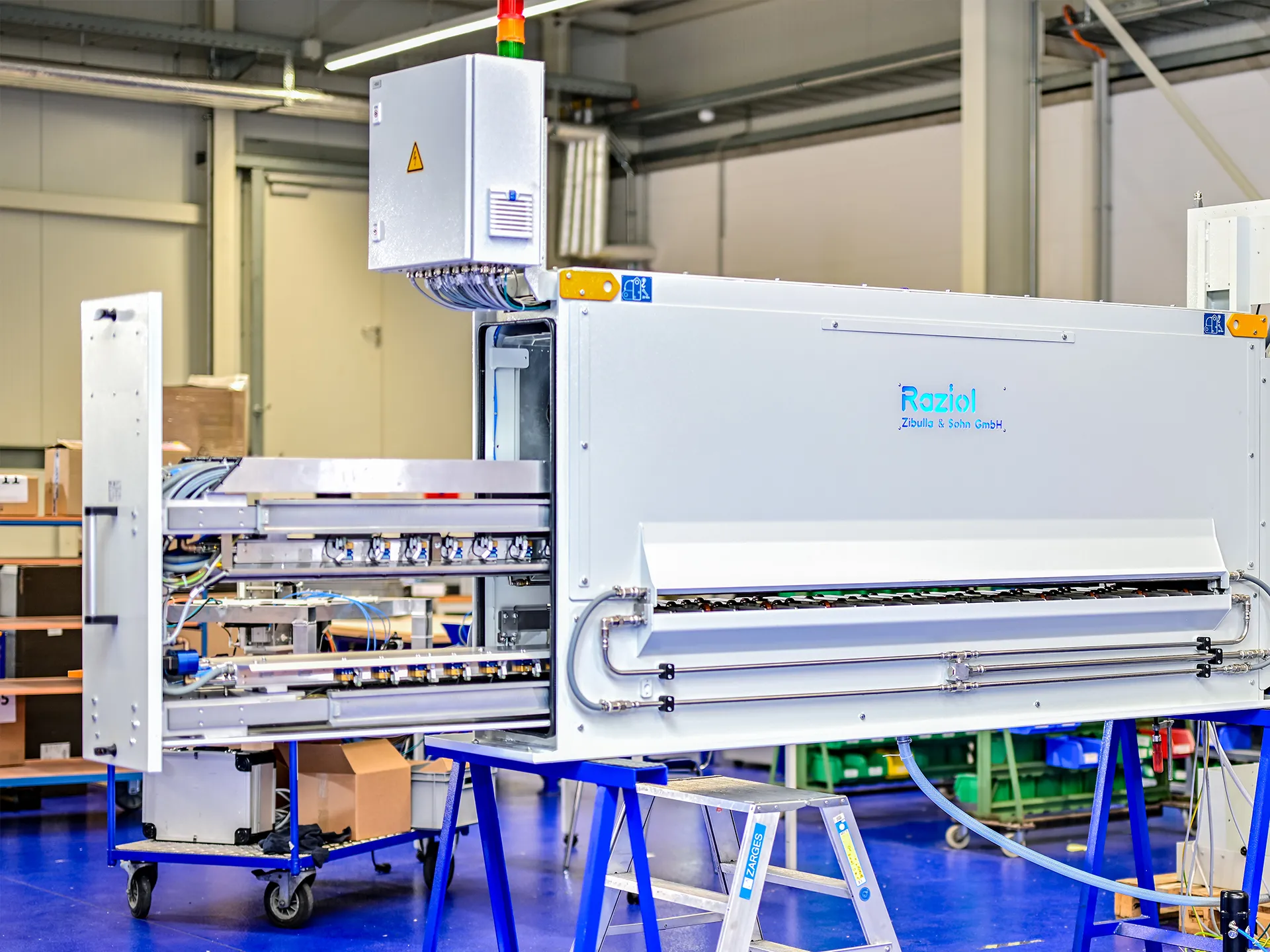

- The inner chamber can be removed via slides, while the spray chamber housing remains on the production line
- Easy access for maintenance, calibration, and cleaning tasks
- Material transition below the passline
- Different application rates can be programmed in the direction of material flow and across the direction of material flow
- High, reproducible precision in terms of application location and application volume
- Processing of a wide variety of lubricants: low- to high-viscosity oils, hot melts, and dry lubes
- Operation via a touchscreen PC connected to the higher-level control system
- Beckhoff or Siemens control systems, including maintenance and diagnostic tools
- Can be integrated into fully automated production lines
Product Information & Advice
Here you will find all relevant documents and additional information about this product. We would be happy to assist you in designing your application and provide personalized advice on suitable solutions.
Technical Inquiry
Personalized Product Advice
For confined installation spaces
SlimLine SKT-SL Spray Chamber
The SlimLine SKT-SL spray chamber is designed for applications involving short circuit boards or tape-and-reel material in confined installation spaces. Thanks to its minimal space requirements in the direction of travel, it can be integrated into production lines even where installation space is limited. A dedicated transport unit inside the spray chamber is not required: Material is transported through the spray chamber via the customer’s own transport systems. The SlimLine SKT-SL enables full-surface, sector-specific, or partial oiling, as well as oiling on one or both sides.
Areas of Application
- Lubrication of (short) circuit boards or tape material in confined installation spaces
- Full-surface, sector-specific, or partial oiling
- Oiling on one or both sides
- Applications with a customer-provided material handling system
- Integration into fully automated production lines
Technical Specifications and Features
- Material width up to 4,500 mm
- Passline: 390 mm
- Minimal space requirement in the direction of travel: 84 mm
- The customer's transportation system will be integrated into the plant design
- The inner chamber can be pulled out on slides (up to a width of 1900 mm), while the spray chamber housing remains on the production line
- Easy access for maintenance, calibration, and cleaning tasks
- Different application rates can be programmed both in the direction of material flow and across it
- Processing of a wide variety of lubricants: low- to high-viscosity oils, hot melts, and dry lubes
- High, reproducible precision in terms of application location and application volume
- Operation via a touchscreen PC connected to the higher-level control system
- Beckhoff or Siemens control systems, including maintenance and diagnostic tools
- Can be integrated into fully automated production lines
Product Information & Advice
Here you will find all relevant documents and additional information about this product. We would be happy to assist you in designing your application and provide personalized advice on suitable solutions.
Technical Inquiry
Personalized Product Advice
Premium SA-P Spraying System
The Premium SA-P spraying system is designed for demanding lubrication tasks within highly complex production lines, particularly in the automotive industry. It enables single- or double-sided lubrication, as well as full-surface, sector-specific, or partial lubrication of strip material with widths of up to 4,500 mm. Different application rates can be precisely programmed both along and across the material’s direction of travel. The integrated monitoring, control, and logging systems ensure precise and reproducible lubricant application, even under complex process requirements.
Areas of Application
- Full-surface, sector-specific, or partial oiling of strip material
- Oiling on one or both sides
- Applications with varying application rates within the material area
- Processing of low- to high-viscosity oils, hot melts, and dry lubricants
- Challenging lubrication tasks within highly complex production lines in the automotive industry
- Integration into fully automated production lines
Technical Specifications and Features
- Material width up to 4,500 mm
- Different application amounts can be freely programmed both along and across the direction of material flow
- Monitoring, controlling, and logging order quantities through a target-actual comparison

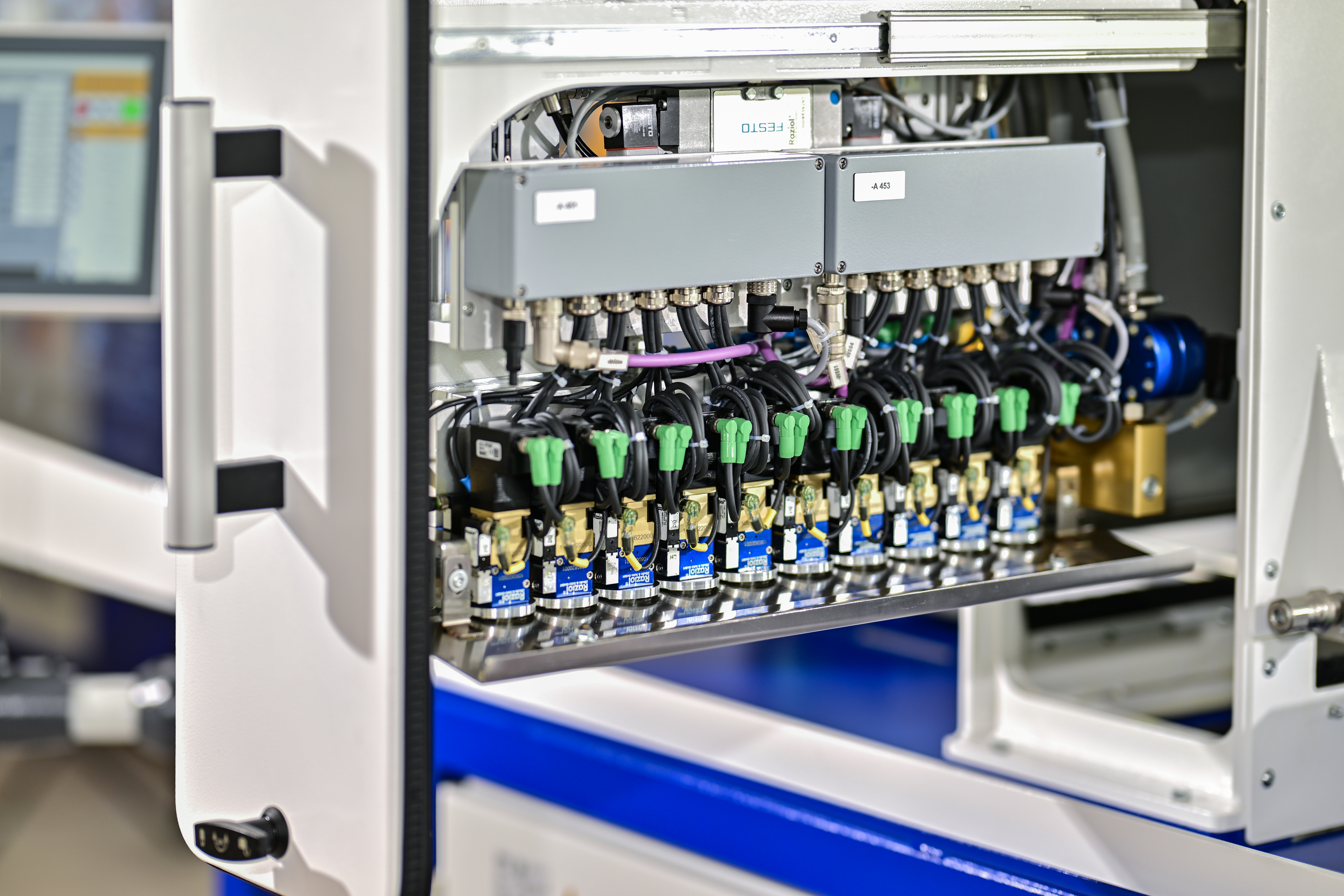

- Reproducible adjustability in terms of application location and application volume thanks to Raziol nozzle technology
- Processing of a wide variety of lubricants: low- to high-viscosity oils, hot melts, and dry lubes
- Integrated Heating System
- A drip-free process achieved through the use of wiper units and drainage channels
- Operation via a touchscreen PC connected to the higher-level control system
- Formulation files can be created even offline, and the required parameters can be set fully automatically
- Integrated control systems from Beckhoff or Siemens
- Help, Maintenance, and Diagnostic Tools
- Can be integrated into fully automated production lines
