Laboratory Lubrication System
For the reproducible application of various lubricants under defined laboratory conditions
Tribological Test Systems & Accessories
Raziol Laboratory Lubrication System
Consistent and reproducible lubrication is crucial for reliable test results and the evaluation of tribological properties in sheet metal forming. Raziol’s laboratory lubrication system allows for the precise and controlled application of a wide variety of lubricants to sheet metal and strip materials.
The system enables realistic test conditions for research and development departments and for quality assurance. Different application volumes, lubricants, and process parameters can be precisely adjusted and applied in a reproducible manner.
Benefits at a Glance:
- Reproducible lubricant application under defined laboratory conditions
- Quick Media Change
- Built-in automatic cleaning cycle
- Storage of up to 1,000 data records
Reproducible Lubricant Application

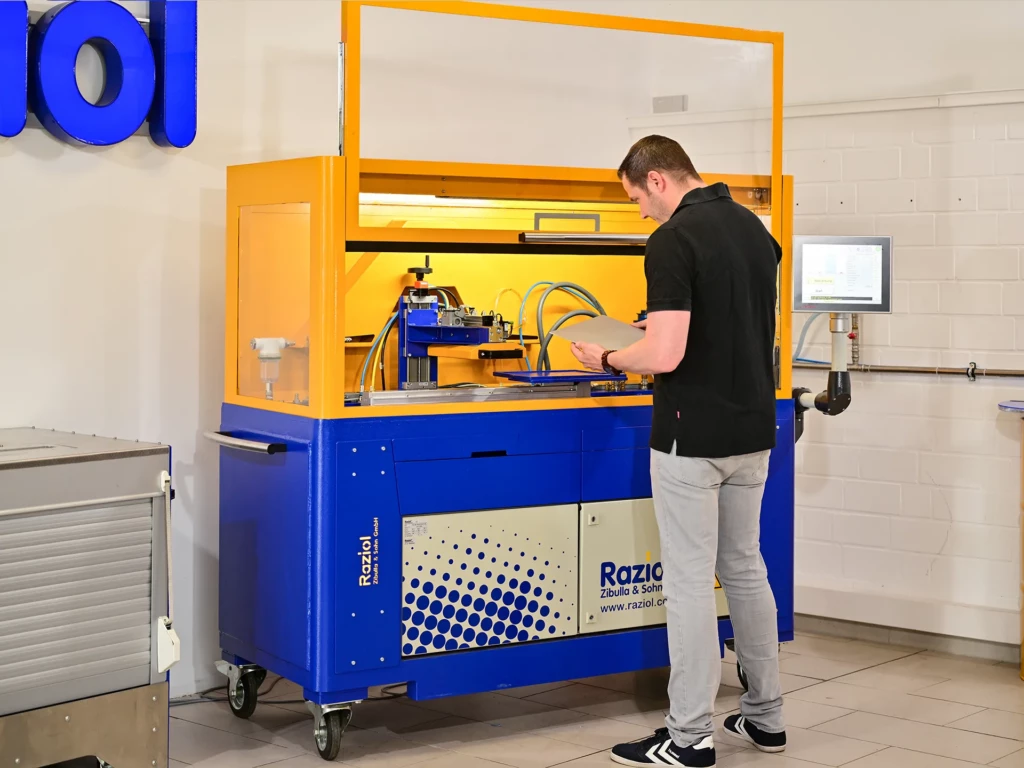

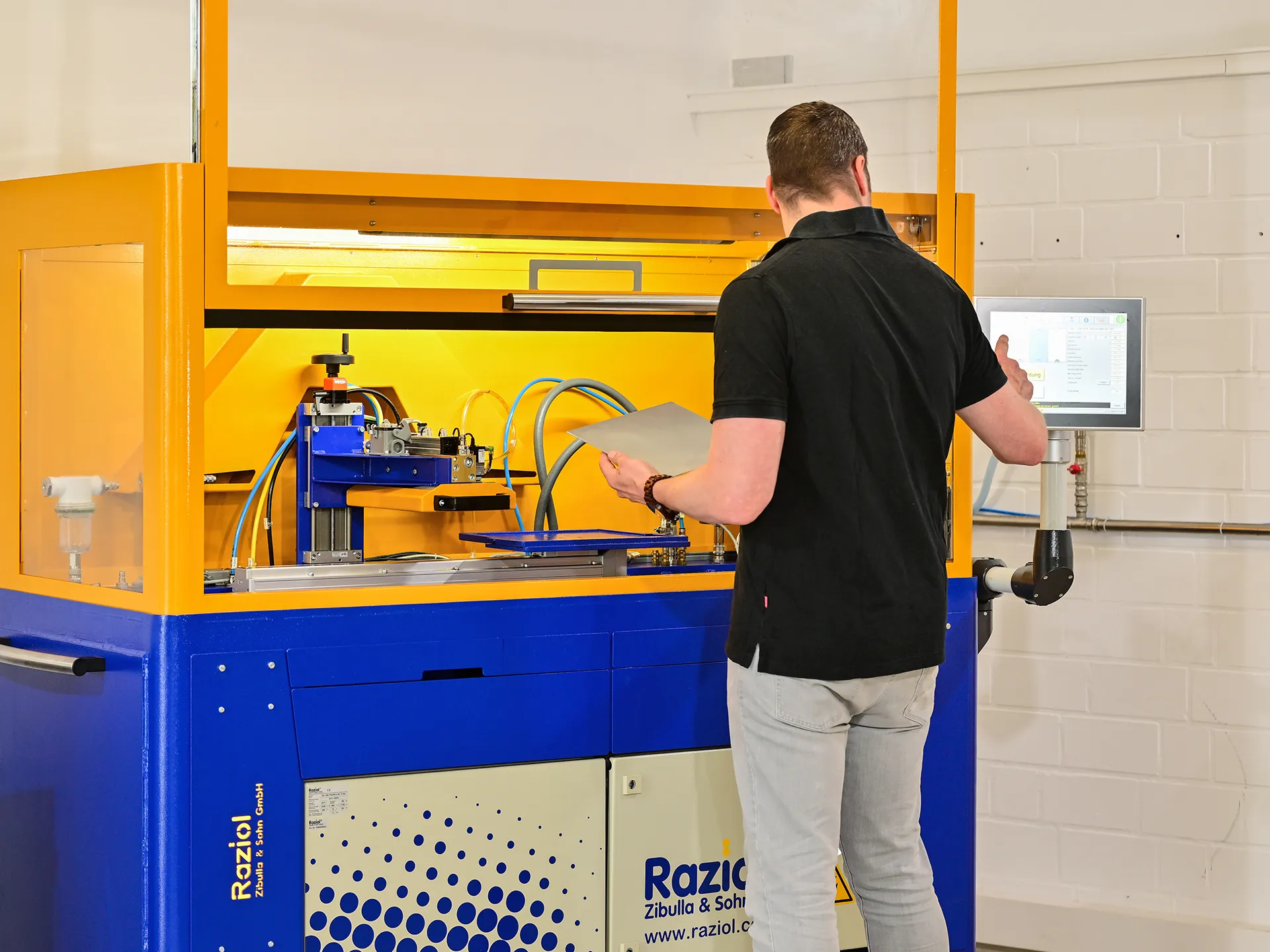

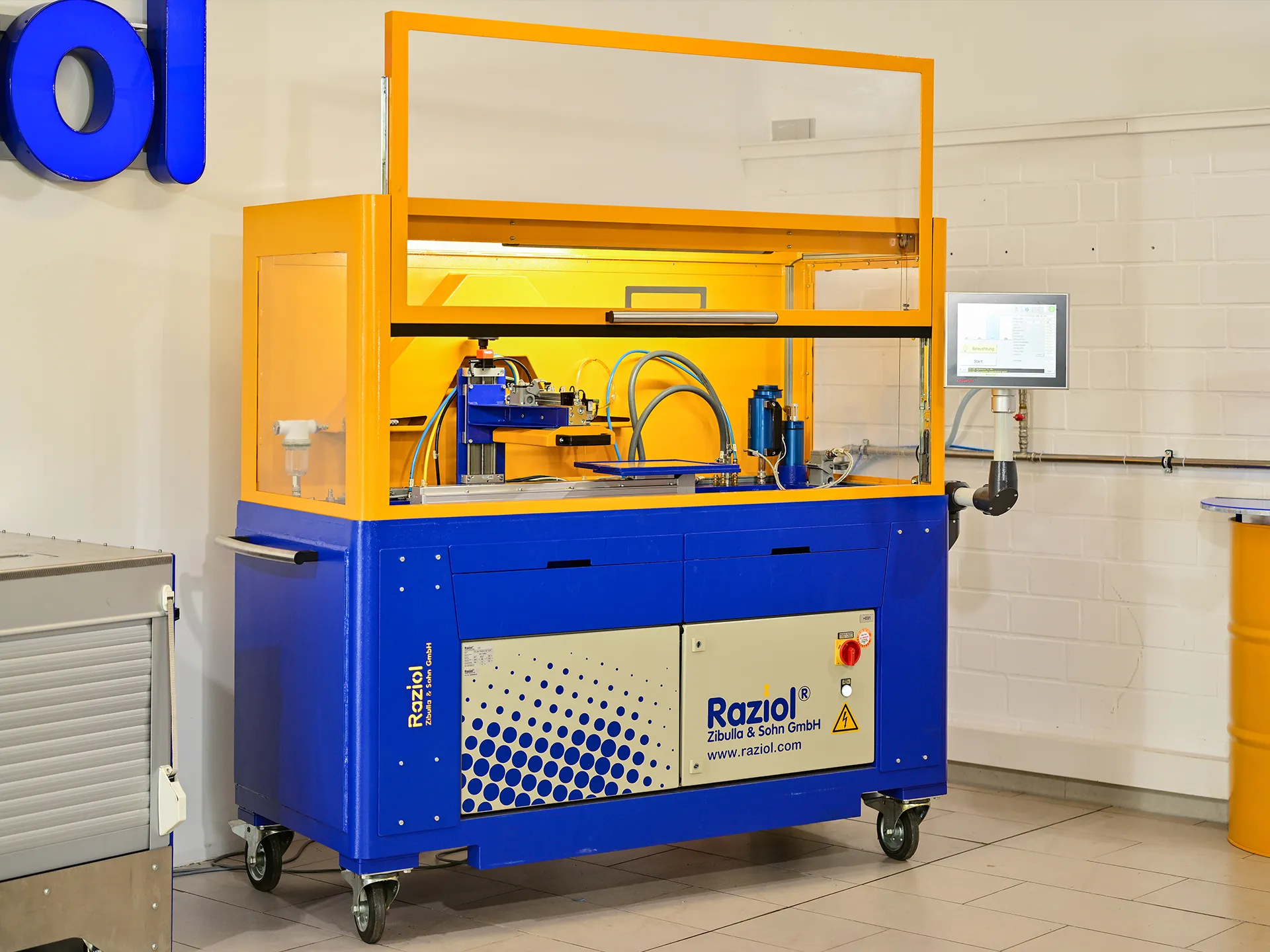

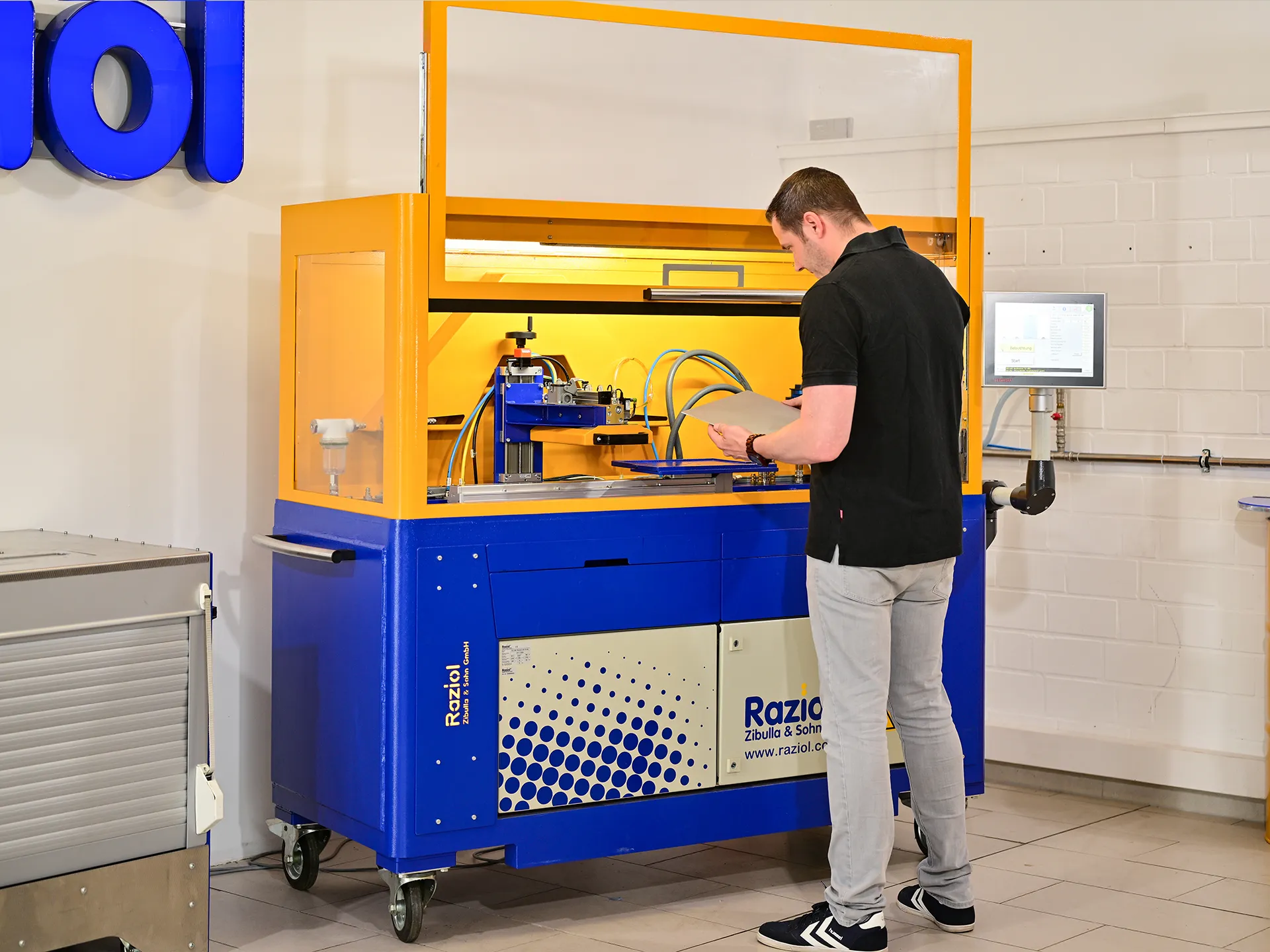

Raziol LBA Laboratory Lubrication System
The Raziol laboratory lubrication system enables the reproducible application of various lubricants under defined laboratory conditions. This allows for the reliable conduct of tribological studies and compatibility tests with subsequent manufacturing processes.
Areas of Application
In preparation for:
- Tribological Studies
- Adhesive and Adhesion Tests
- Degreasing and Cleaning Tests
- Corrosion Protection Studies
- KTL Compatibility Testing
- Weldability Tests
- Material and Process Analyses
Technical Specifications for the Raziol Laboratory Lubrication System
| Technical Feature | Design |
|---|---|
| Order Quantity | approx. 0.1–6.0 g/m² (depending on the medium) |

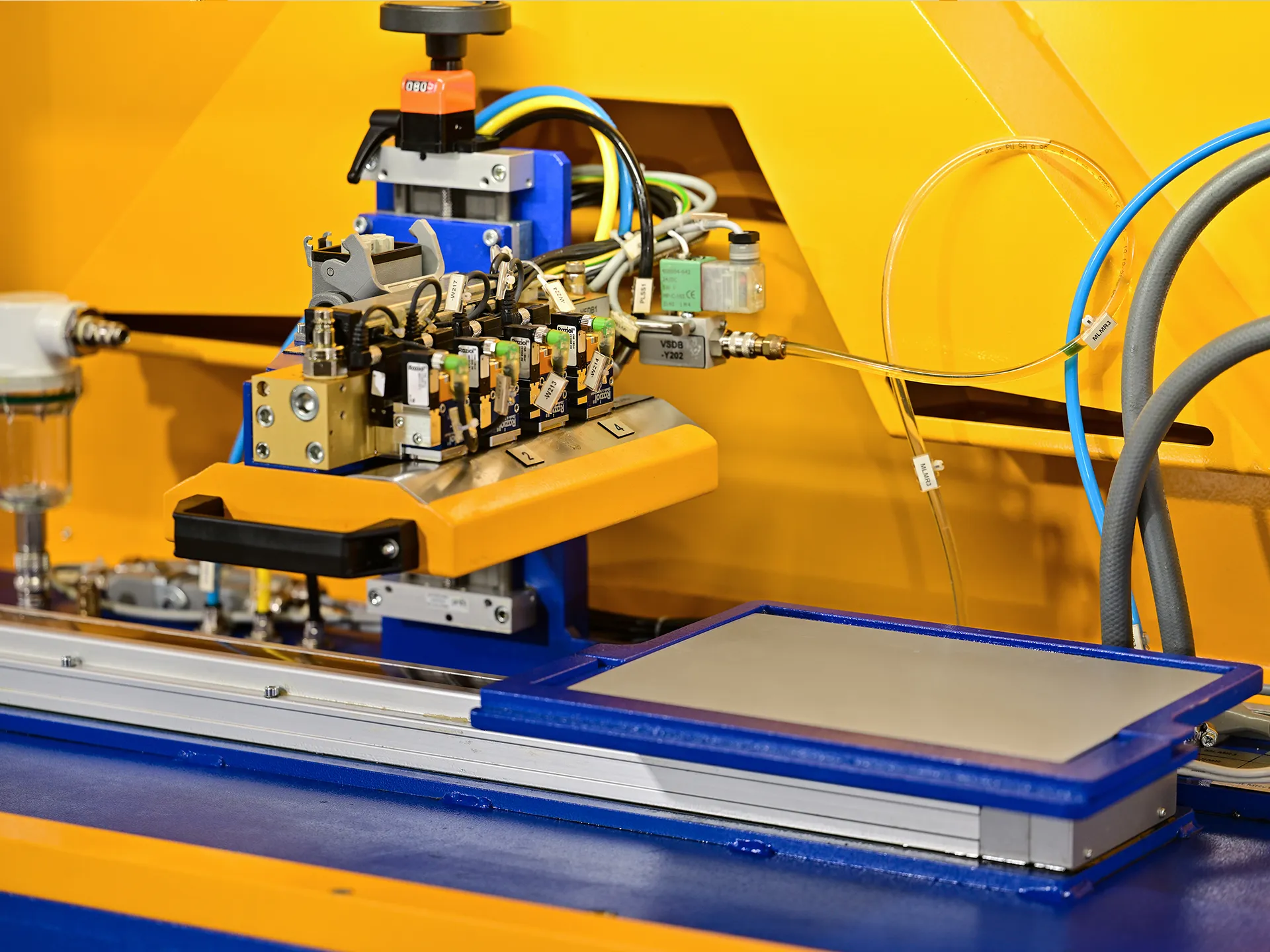

| Greasing Surface | Circuit boards up to a maximum of DIN A4 (297 × 210 mm); metal strips up to a maximum of 50 × 600 mm |
| Media | Various forming lubricants, hot melt optional |
| Control | SPS 4000 with Touchscreen |
| Supply Voltage | 400 V |
| Compressed Air Supply | 5 bar (max. 8 bar) |
| Dimensions | (W × L × H): 900 × 2,300 × 1,650 mm |
| Optional | Connecting an External Exhaust System |
Product Information & Advice
Here you will find technical documentation and additional information about the laboratory oiling system. We would be happy to assist you in designing your application and provide personalized advice on suitable solutions.
