Roller conveyor oiler with rollers Ø 60 mm
For feed lengths up to 190 mm, stroke rates up to 200 strokes/min, and material thicknesses up to 5 mm.
Roller Lubrication Systems

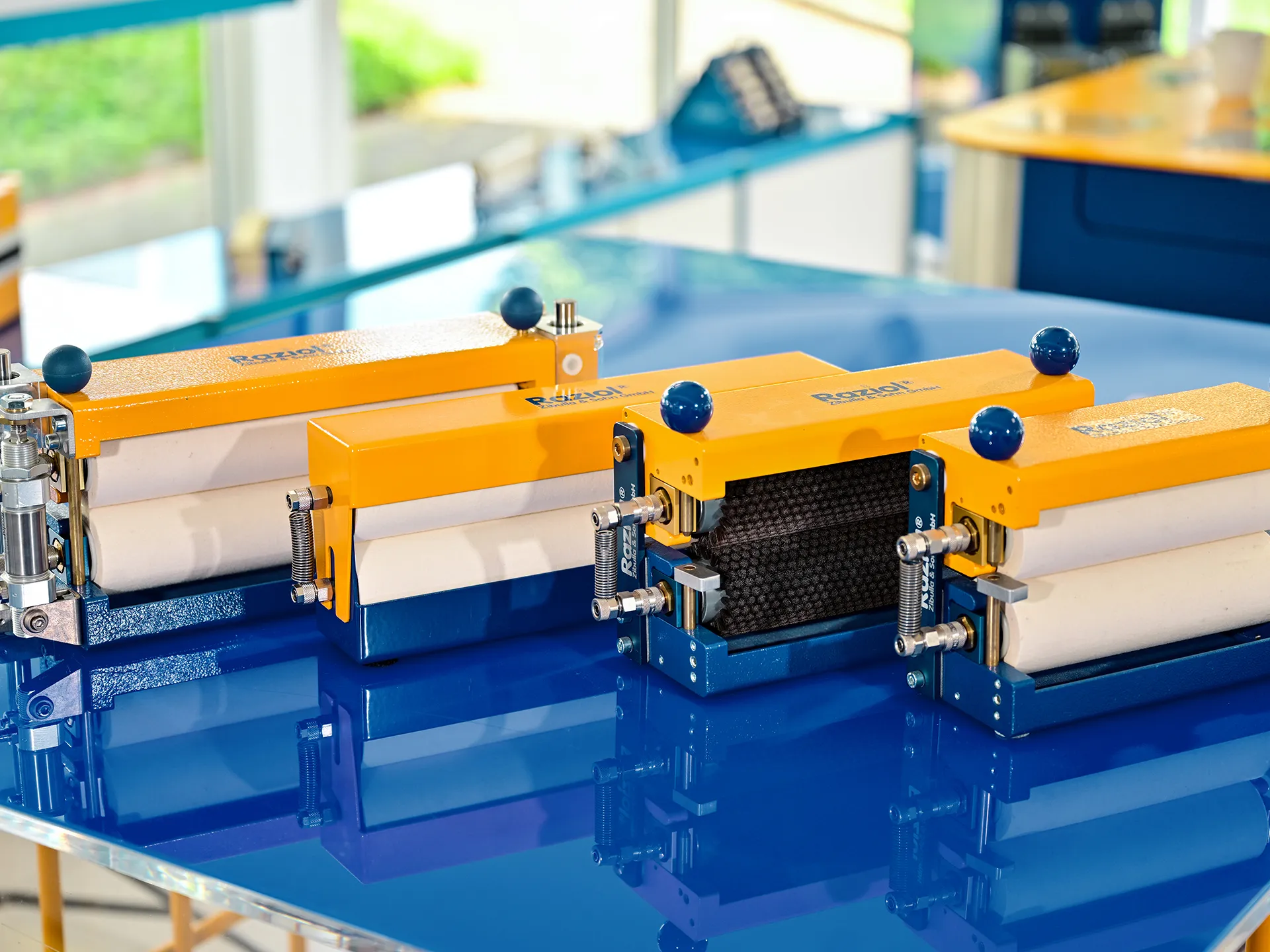

RB F-Series Roller Belt Oiler
The RB F-Series roller-type strip oilers enable the even, oil-mist-free application of forming lubricants to strip material. Depending on the model, felt, brush, or Cellpor rollers are used, which are supplied with lubricant from the inside.
Thanks to their 60-mm roller diameter and robust construction, these systems are suitable for punching, drawing, profiling, and bending processes with feed lengths of up to 190 mm and material thicknesses of up to 5 mm. Various roller adjustment configurations and lubrication widths of up to 1,000 mm allow for adaptation to different process requirements.
If special requirements exist, the roller lubricators can be custom-designed to suit the specific application.
The roller belt oilers are available in various models to accommodate different material thicknesses, lubrication widths, and requirements for roller adjustment and belt guidance:
| Model | Distinctive Feature | Material thickness | Greasing width |
|---|---|---|---|
| RB F | Sturdy Basic Model | up to 1.5 mm | 75–600 mm |
| RB FK-SW | Tilt function and quick-change function | up to 3 mm | 25–900 mm |
| RB F-SW | Pneumatic Roller Adjustment | up to 3 mm | 50–600 mm |
| RB FK-P-SW | Pneumatic Threading Aid | up to 5 mm | 25–800 mm |
| RB PF-SW | Pneumatic cylinders on both sides, precision guide elements | up to 5 mm | 50–1,000 mm |
| RB TF-P-SW | Separate roller adjustment, suitable for transfer feeds | up to 5 mm | 50–800 mm |
A Reliable Foundation

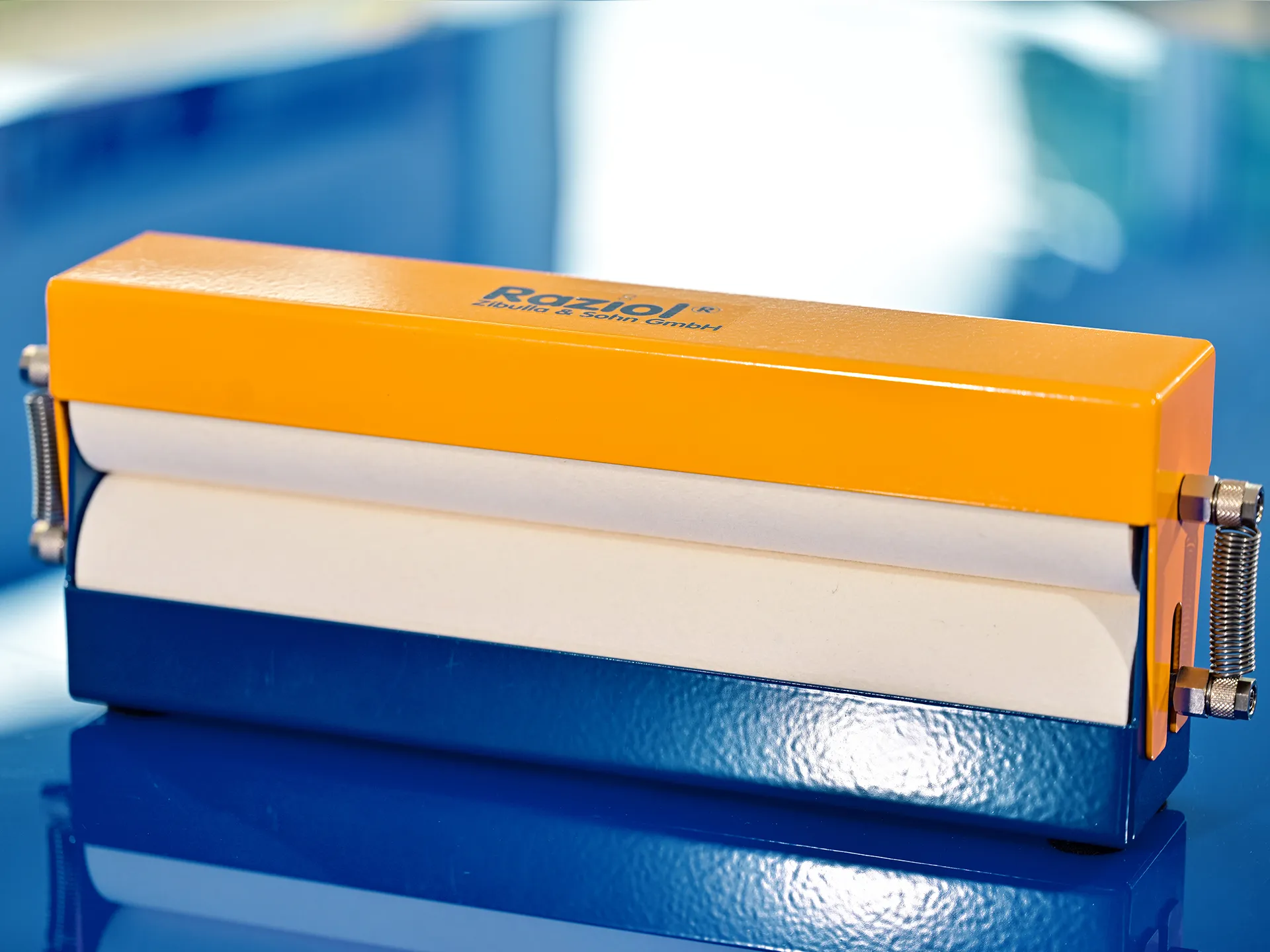

Spring-Loaded Roller Lubricator (RB F)
The RB F is the robust base model in the product series designed for continuous lubrication processes. The contact pressure of the upper roller is generated by tension springs. Its simple design ensures reliable, oil-mist-free lubricant application with minimal maintenance.
For use with medium- to high-viscosity fluids, this model is also available with brush rollers (RB B) upon request.
Areas of Application
- Punching • Deep Drawing • Bending
- Suitable with some limitations: Profile rollers
Technical Specifications
- Roller diameter: 60 mm
- Roller Type: Felt roller; brush roller available for medium- to high-viscosity media
- Upper roller adjustment: via tension springs (felt); via screw spindles (brush)
- Recommended maximum material thickness: 1.5 mm
- Max. oil viscosity (40 °C): 150 mm²/s (felt); 500 mm²/s (brush)
- Greasing width: 75 to 600 mm
Technical Specifications for the RB F
Spring-Loaded Roller Belt Lubricator (RB F) / Ø 60 mm
| Description | Greasing width [mm] | Width of base [mm] | Top Width [mm] | Base Plate Width [mm] |
|---|---|---|---|---|
| RB F 075 | 75 | 85 | 91 | 200 |
| RB F 150 | 150 | 160 | 166 | 275 |
| RB F 225 | 225 | 235 | 241 | 350 |
| RB F 300 | 300 | 310 | 316 | 425 |
| RB F 350 | 350 | 360 | 366 | 475 |
| RB F 450 | 450 | 460 | 466 | 575 |
| RB F 500 | 500 | 510 | 516 | 625 |
| RB F 600 | 600 | 610 | 616 | 725 |
| RB F Special | upon request | upon request | upon request | upon request |
Product Information & Advice
Here you will find all relevant documents and additional information about this product. We would be happy to assist you in designing your application and provide personalized advice on suitable solutions.
Technical Data Sheets (Felt & Brush Versions)
Technical Inquiry
Personalized Product Advice
With quick-change function & threading aid

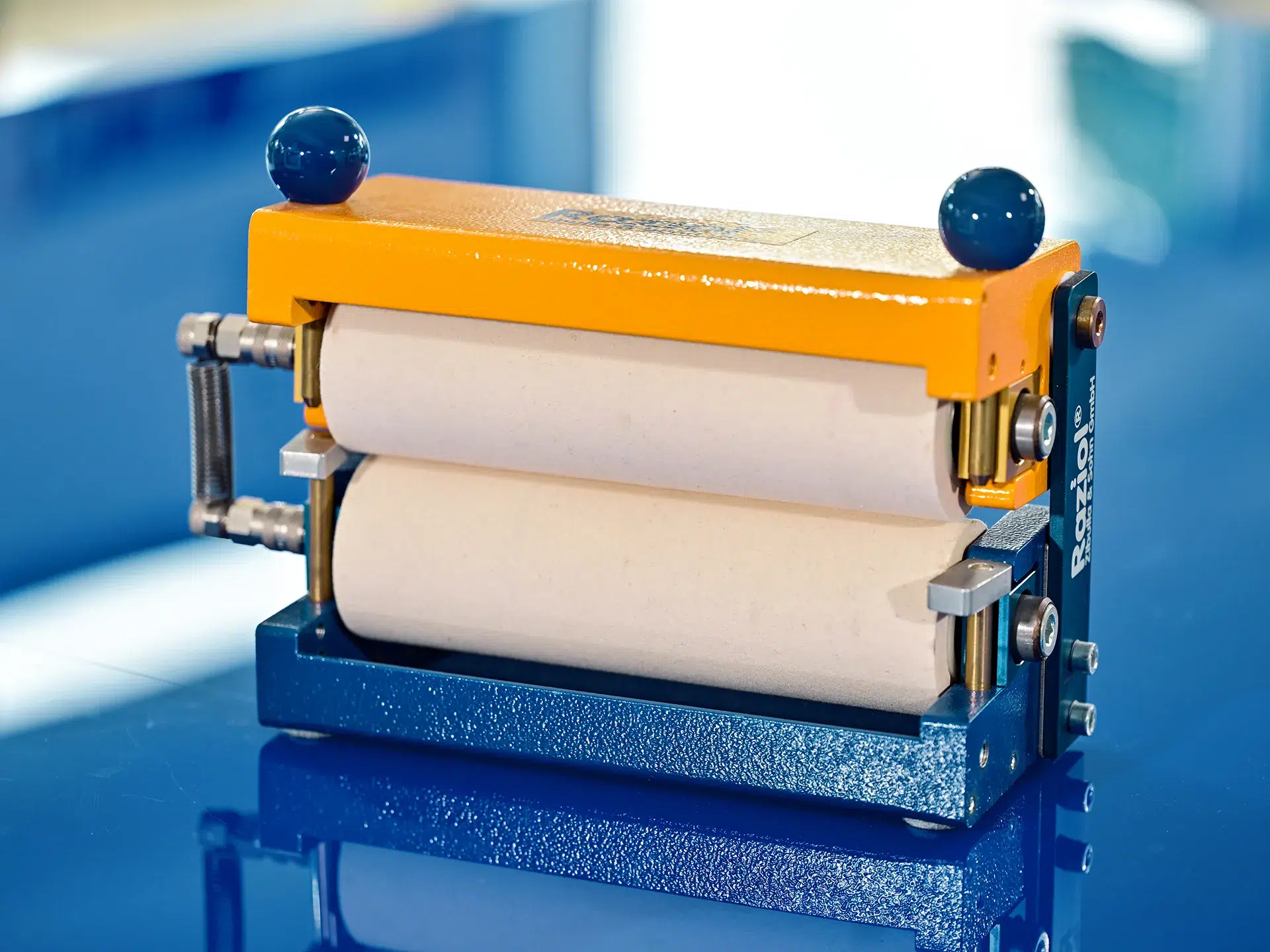

Roller Conveyor Oiler with Felt Tilting Quick-Change Device (RB FK-SW)
The RB FK-SW combines a mechanical tilting function for easy belt threading with a tool-free roller change. An opening stroke of approximately 10 mm allows for convenient threading of the belt’s starting end. The quick-change function reduces the effort required to replace the lubrication rollers. Roller adjustment is achieved via two tension springs, ensuring reliable and uniform lubrication.
For use with medium- to high-viscosity fluids, this model is also available with brush rollers upon request (RB BK-SW).
Applications:
- Punching • Bending • Deep Drawing • Profile Rolling
Technical Specifications:
- Roller diameter: 60 mm
- Roller Type: Felt roller; brush roller available for medium- to high-viscosity media
- Upper roller adjustment: via tension springs
- Recommended maximum material thickness: 3.0 mm
- Max. oil viscosity (40 °C): 150 mm²/s (felt); 500 mm²/s (brush)
- Greasing width: 100 to 800 mm; can be adjusted using roller replacement sets
- Special feature: Tilting mechanism on the upper section to assist with threading
Technical Specifications RB FK-SW
Roller Belt Lubricator, Felt/Tilting/Quick-Change (RB FK-SW) / Ø 60 mm
| Description | Greasing width [mm] | Box width [mm] | Space requirements [mm] |
|---|---|---|---|
| RB FK-SW 0100 | 100 | 135 | 355 |
| RB FK-SW 0150 | 150 | 185 | 405 |
| RB FK-SW 0200 | 200 | 235 | 455 |
| RB FK-SW 0250 | 250 | 285 | 505 |
| RB FK-SW 0300 | 300 | 335 | 555 |
| RB FK-SW 0350 | 350 | 385 | 605 |
| RB FK-SW 0400 | 400 | 435 | 655 |
| RB FK-SW 0450 | 450 | 485 | 705 |
| RB FK-SW 0500 | 500 | 535 | 755 |
| RB FK-SW 0600 | 600 | 635 | 855 |
| RB FK-SW 0700 | 700 | 735 | 955 |
| RB FK-SW 0800 | 800 | 835 | 1055 |
| RB FK-SW 0900 | 900 | 935 | 1155 |
| RB FK SW Special | upon request | upon request | upon request |
Product Information & Advice
Here you will find all relevant documents and additional information about this product. We would be happy to assist you in designing your application and provide personalized advice on suitable solutions.
Technical Data Sheets (Felt & Brush Versions)
Technical Inquiry
Personalized Product Advice
Easy to maintain & flexible

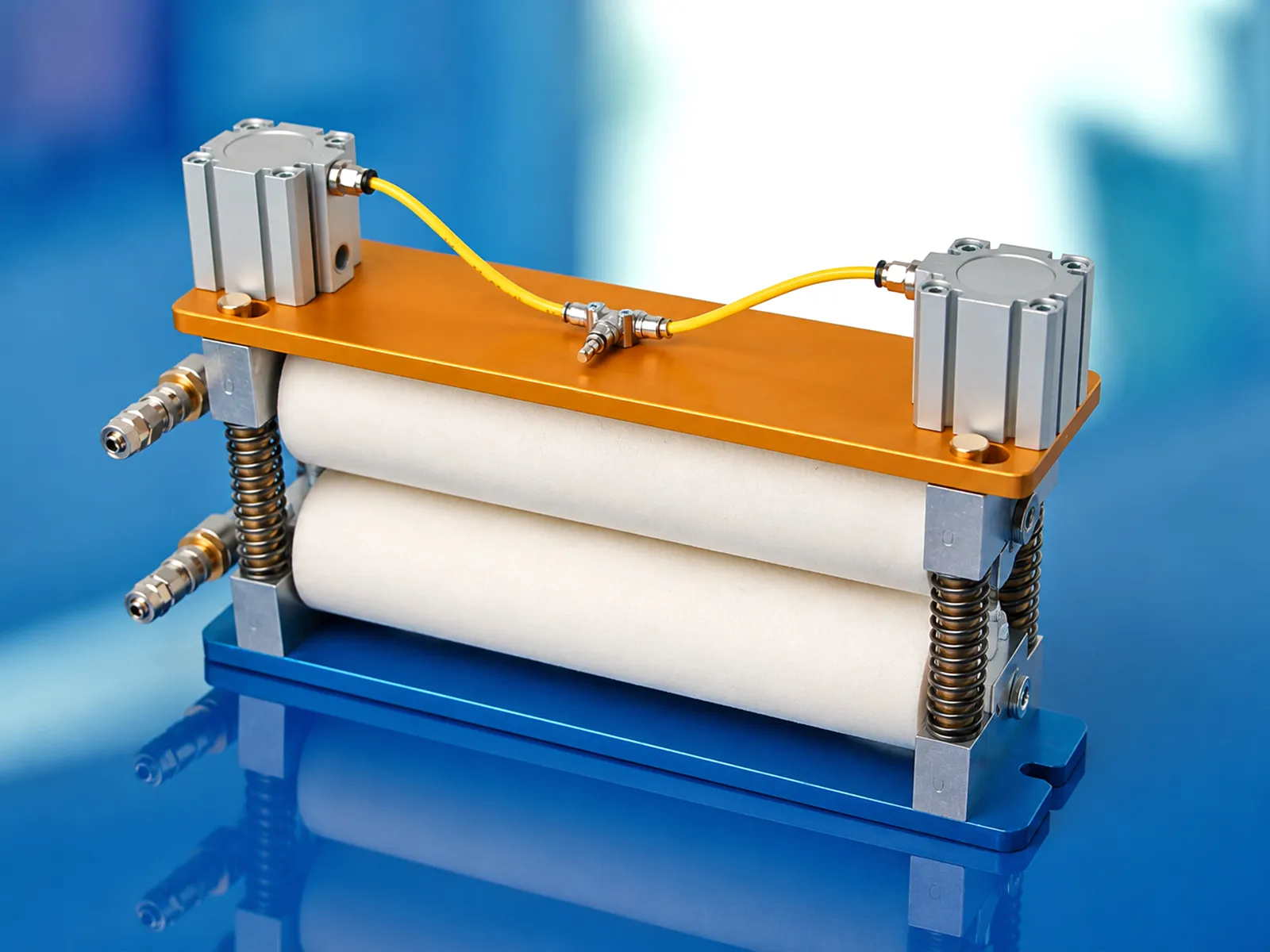

Roller Conveyor Oiler with Felt Quick-Change Device (RB F-SW)
The open design of the RB F-SW allows for tool-free removal of the oiling rollers and simplifies maintenance and setup. The rollers are mounted on spring-loaded, precision guides. Pneumatic cylinders position the upper roller against the web material in a controlled manner and ensure uniform contact pressure.
The rollers can be flexibly adjusted to accommodate different belt widths, ensuring a high degree of versatility for a wide range of production requirements.
Applications:
- Punching • Bending • Deep Drawing • Profile Rolling
Technical Specifications:
- Roller diameter: 60 mm
- Roller type: Felt roller
- Drive for the upper roller: via a pneumatic cylinder
- Recommended maximum material thickness: 3.0 mm
- Max. oil viscosity (40 °C): 150 mm²/s
- Greasing width: 100 to 600 mm; can be adjusted using roller replacement sets
Technical Specifications for the RB F-SW
Roller-Type Lubricator, Felt/Quick-Change (RB F-SW) / Ø 60 mm
| Description | Greasing width [mm] | Mounting width [mm] | Width of base [mm] | Overall Width [mm] |
|---|---|---|---|---|
| RB F-SW 100 | 100 | 165 | 185 | 196 |
| RB F-SW 150 | 150 | 215 | 235 | 246 |
| RB F-SW 200 | 200 | 265 | 285 | 296 |
| RB F-SW 250 | 250 | 315 | 335 | 346 |
| RB F-SW 300 | 300 | 365 | 385 | 396 |
| RB F-SW 350 | 350 | 415 | 435 | 446 |
| RB F-SW 400 | 400 | 465 | 485 | 496 |
| RB F-SW 450 | 450 | 515 | 535 | 546 |
| RB F-SW 500 | 500 | 565 | 585 | 596 |
| RB F-SW 600 | 600 | 665 | 685 | 696 |
| RB F-SW Special | upon request | upon request | upon request | upon request |
Product Information & Advice
Here you will find all relevant documents and additional information about this product. We would be happy to assist you in designing your application and provide personalized advice on suitable solutions.
Technical Data Sheet (Felt Version)
Technical Inquiry
Personalized Product Advice
Quick-Change Function & Pneumatic Threading Aid

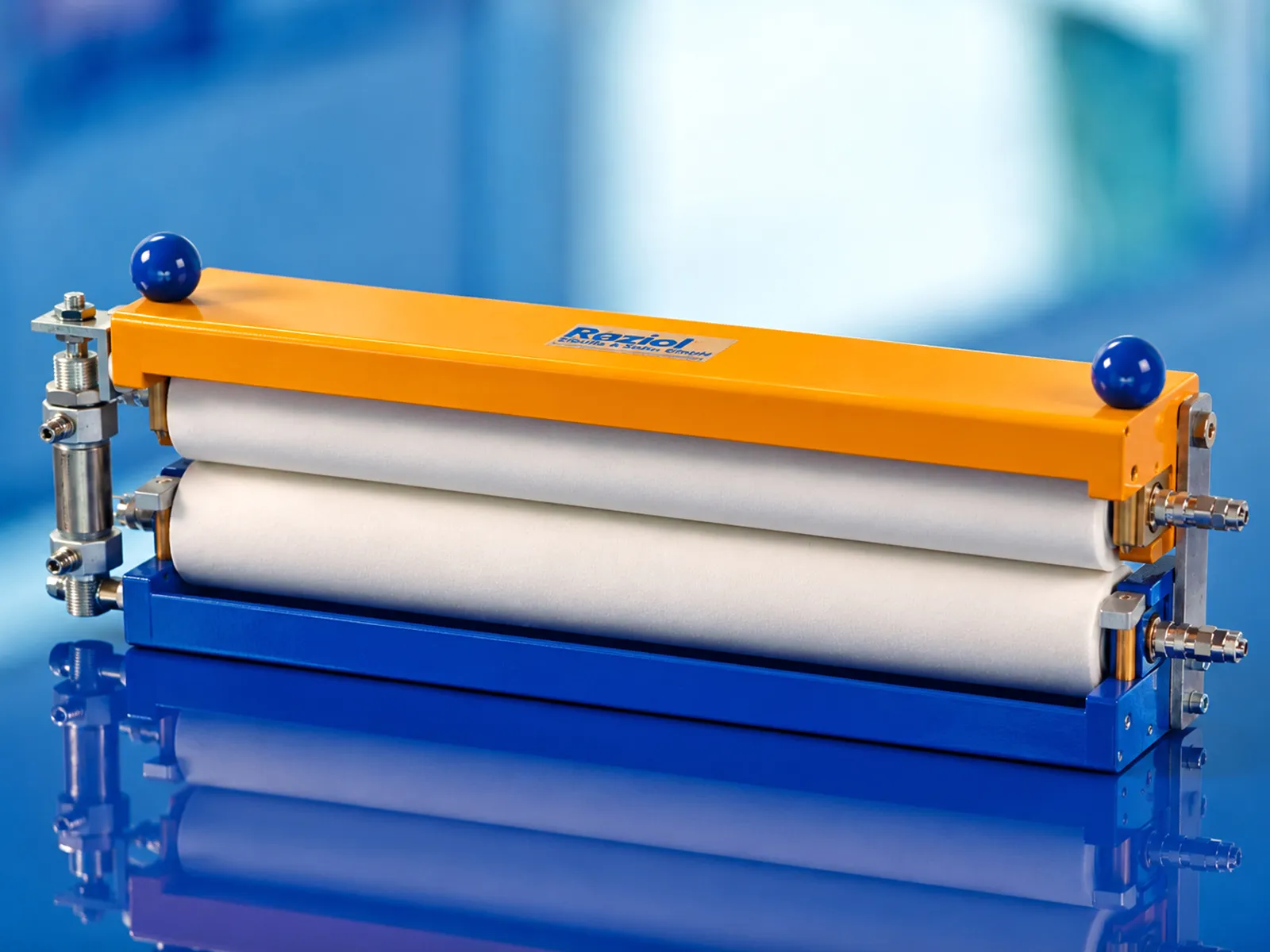

Roller Conveyor Oiler with Felt, Pneumatic Tilting Quick-Change Device (RB FK-P-SW)
The RB FK-P-SW features a pneumatically actuated tilting function for threading the belt. With an opening stroke of approximately 10 mm, the rollers can be opened pneumatically, allowing the start of the belt to be threaded in easily. The tool-free roller change helps ensure short setup and maintenance times.
For use with medium- to high-viscosity fluids, this model is also available with brush rollers upon request (RB BK-P-SW).
Applications:
- Punching • Bending • Punching and Stacking • Deep Drawing • Profile Rolling
Technical Specifications:
- Roller diameter: 60 mm
- Roller Type: Felt roller; brush roller available for medium- to high-viscosity media
- Drive mechanism for the upper roller: via a pneumatic cylinder mounted on the side
- Recommended maximum material thickness: 5.0 mm
- Max. oil viscosity (40 °C): 150 mm²/s (felt); 500 mm²/s (brush)
- Greasing width: 100 to 800 mm; can be adjusted using roller replacement sets
- Special feature: Tilting mechanism on the upper section to assist with threading
Technical Specifications RB FK-P-SW
Roller Belt Lubricator, Felt/Tilt/Pneumatic/Quick-Change (RB FK-P-SW) / Ø 60 mm
| Description | Greasing width [mm] | Box width [mm] | Space requirements [mm] |
|---|---|---|---|
| RB FK-P-SW 0100 | 100 | 135 | 230 |
| RB FK-P-SW 0150 | 150 | 185 | 280 |
| RB FK-P-SW 0200 | 200 | 235 | 330 |
| RB FK-P-SW 0250 | 250 | 285 | 380 |
| RB FK-P-SW 0300 | 300 | 335 | 505 |
| RB FK-P-SW 0350 | 350 | 385 | 555 |
| RB FK-P-SW 0400 | 400 | 435 | 605 |
| RB FK-P-SW 0450 | 450 | 485 | 655 |
| RB FK-P-SW 0500 | 500 | 535 | 705 |
| RB FK-P-SW 0600 | 600 | 635 | 805 |
| RB FK-P-SW 0700 | 700 | 735 | 905 |
| RB FK-P-SW 0800 | 800 | 835 | 1005 |
| RB FK-P-SW Special | upon request | upon request | upon request |
Product Information & Advice
Here you will find all relevant documents and additional information about this product. We would be happy to assist you in designing your application and provide personalized advice on suitable solutions.
Technical Data Sheets (Felt & Brush Versions)
Technical Inquiry
Personalized Product Advice
pneumatically guided on both sides

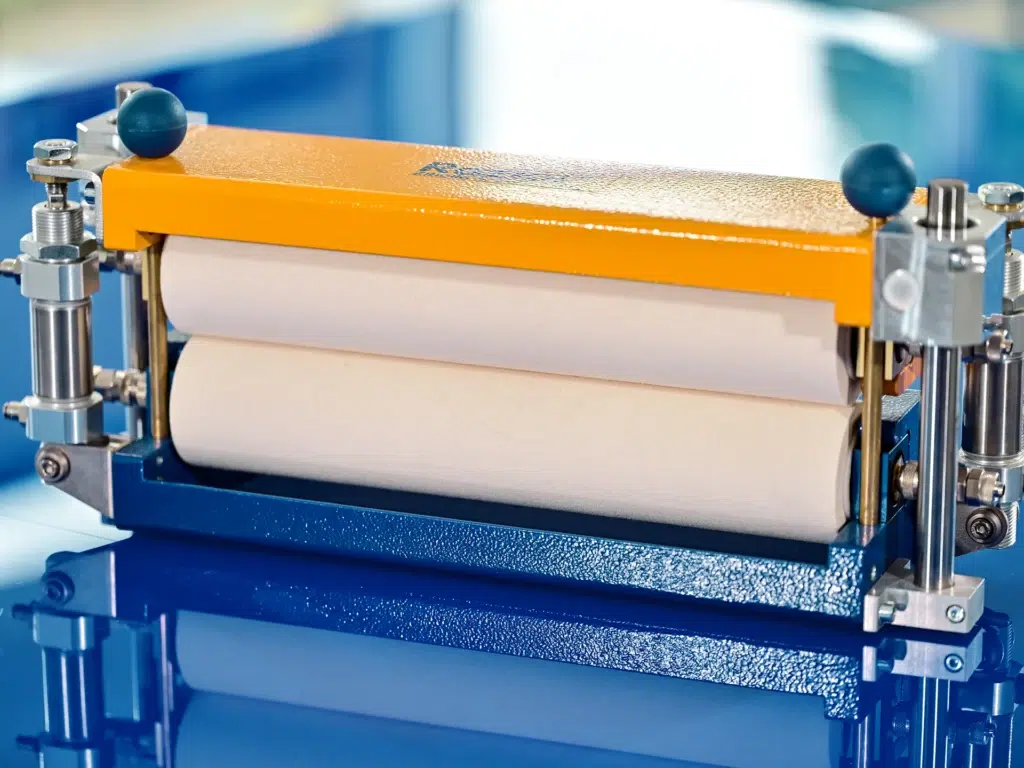

Pneumatic Roller Conveyor Oiler with Felt Quick-Change Mechanism (RB PF-SW)
On the RB PF-SW, the upper roller is driven by two pneumatic cylinders mounted on the sides. Precision guide elements ensure controlled guidance and uniform contact pressure on the web material. The opening stroke of approximately 15 mm facilitates web feeding.
For use with medium- to high-viscosity media, this model is also available with brush rollers upon request (RB PB-SW).
Applications:
- Deep Drawing • Profile Rolling
Technical Specifications:
- Roller diameter: 60 mm
- Roller Type: Felt roller; brush roller available for medium- to high-viscosity media
- Drive for the upper roller: via a pneumatic cylinder
- Recommended maximum material thickness: 5.0 mm
- Max. oil viscosity (40 °C): 150 mm²/s (felt); 500 mm²/s (brush)
- Greasing width: 100 to 800 mm; can be adjusted using roller replacement sets
Technical Specifications for RB PF-SW
Roller-Type Lubricator, Pneumatic/Felt/Quick-Change (RB PF-SW) / Ø 60 mm
| Description | Greasing width [mm] | Box width [mm] | Space requirements [mm] |
|---|---|---|---|
| RB PF-SW 0100 | 100 | 135 | 356 |
| RB PF-SW 0150 | 150 | 185 | 406 |
| RB PF-SW 0200 | 200 | 235 | 456 |
| RB PF-SW 0250 | 250 | 285 | 506 |
| RB PF-SW 0300 | 300 | 335 | 556 |
| RB PF-SW 0350 | 350 | 385 | 606 |
| RB PF-SW 0400 | 400 | 435 | 656 |
| RB PF-SW 0450 | 450 | 485 | 706 |
| RB PF-SW 0500 | 500 | 535 | 756 |
| RB PF-SW 0600 | 600 | 635 | 856 |
| RB PF-SW 0700 | 700 | 735 | 956 |
| RB PF-SW 0800 | 800 | 835 | 1056 |
| RB PF SW Special | upon request | upon request | upon request |
Product Information & Advice
Here you will find all relevant documents and additional information about this product. We would be happy to assist you in designing your application and provide personalized advice on suitable solutions.
Technical Data Sheets (Felt & Brush Versions)
Technical Inquiry
Personalized Product Advice
Separate roller feed—pneumatically controlled—suitable for transfer feed

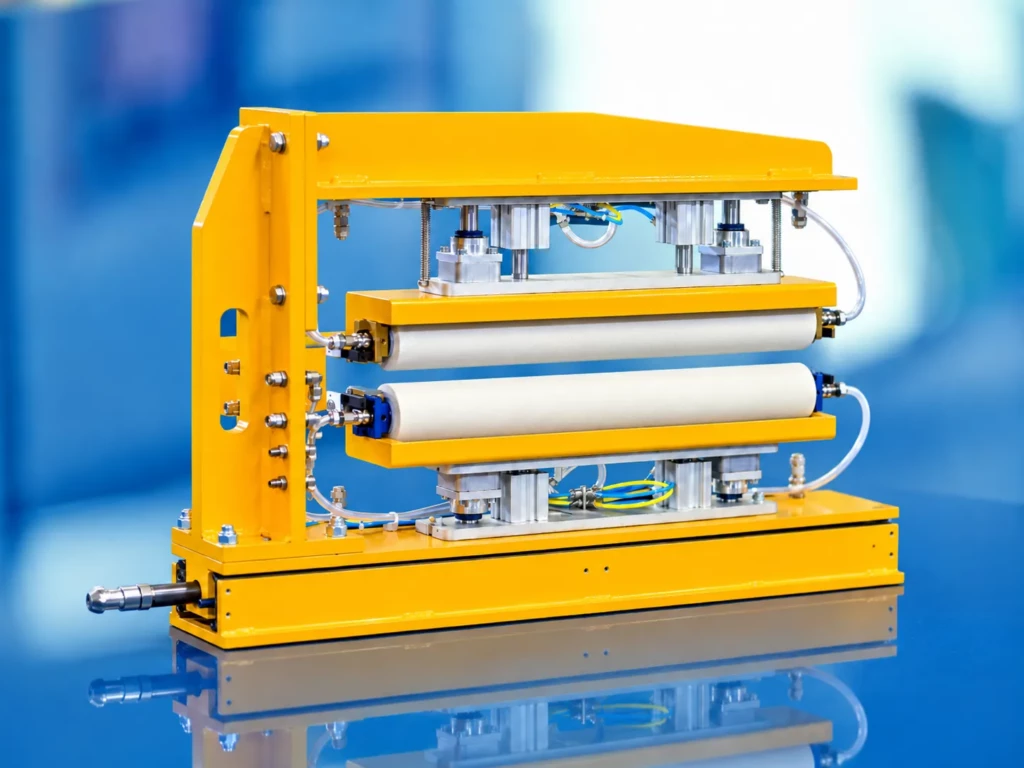

Roller Conveyor Oiler Transfer Felt-Pneumatic Quick-Change Device (RB TF-P-SW)
